TraCell

Track suspended cells in microfluidic devices, from a recorded video or live from a Phantom high-speed camera. TraCell finds each cell in every frame, links the detections into trajectories, and gives you the tables, plots and videos to analyse them.

Download for Windows Linux

The buttons always fetch the newest release. Release notes A macOS version will follow.

First release in preparation

TraCell 1.0 is not released yet. The download buttons and the install commands on this site start working with the first release.

irm https://tracell.app/install.ps1 | iex

curl -fsSL https://tracell.app/install.sh | sh

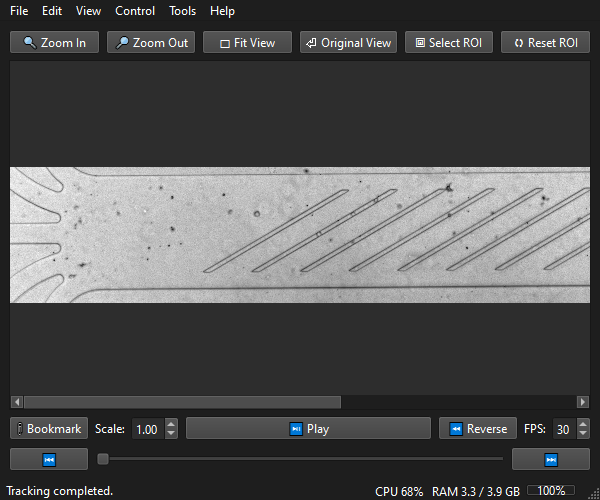

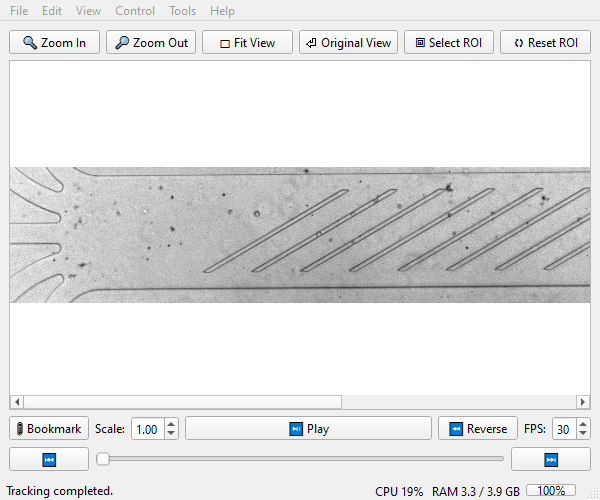

The TraCell main window with a microfluidic channel The TraCell main window with a microfluidic channel

What it does

  • Offline tracking

    Open an .avi, .mp4 or .cine file, tune the mask and the contour limits on the live preview, then track a frame range. Stop at any time and keep what was tracked.

  • Live tracking (AutoTrack)

    Records from a Phantom camera partition by partition and tracks each partition while the next one records. Frames stay in RAM, so nothing waits for a disk.

  • Post-processing

    Every tracked point in one sortable table. Filters apply as you drag, the plot shows all filtered trajectories, and a click on a point jumps the video to that frame and cell.

  • Export

    One dialog, one folder: trajectory table, per-cell summary, session notes, the settings as a loadable preset and the video with traces. Excel, CSV or text.

  • Undo, presets and notes

    Every settings change can be undone. Presets save a whole configuration; session notes log what you did and when.

  • Light and dark

    Follows the system theme or your choice in Preferences. TraCell checks for a new version when it starts.

A look at the analysis window

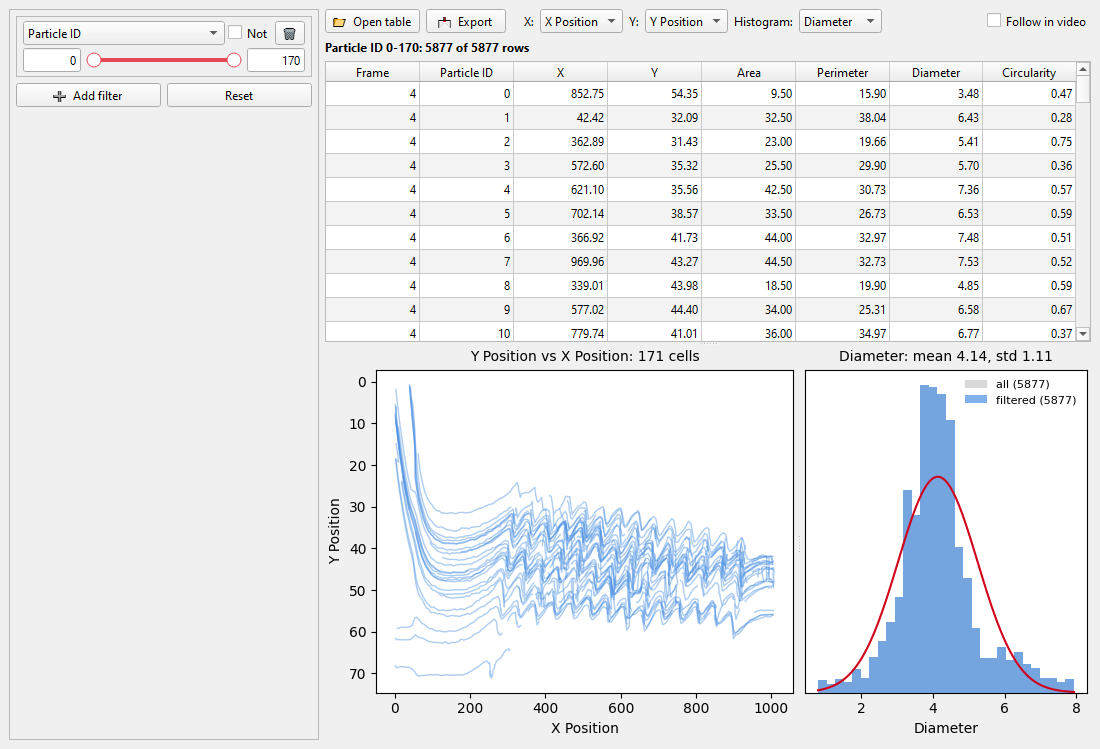

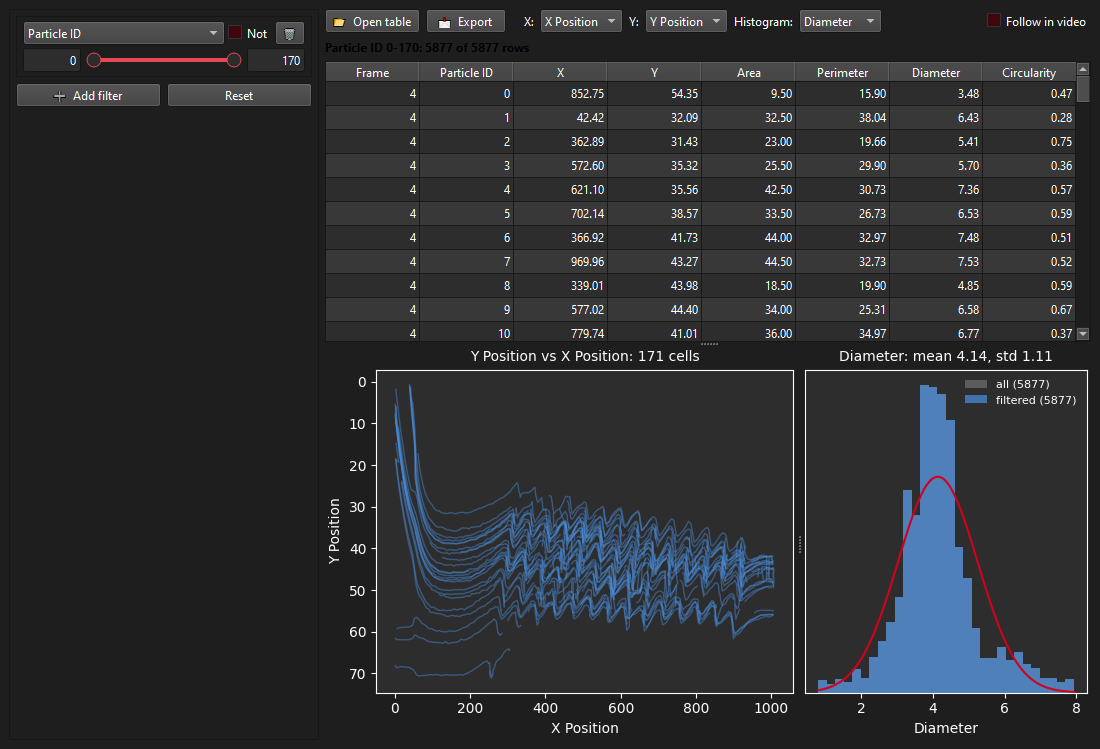

Post-processing: table, trajectories and histogram Post-processing: table, trajectories and histogram

Ready to try it? Install TraCell, then follow the first run.
